Questions:

How do I use the Runge-Kutta method for more accurate solutions?
What do the terms first-order accurate and second-order accurate mean?

Objectives:

Use the Runge-Kutta method, implemented in Python, to solve a first-order ODE
Compare results at different levels of approximation using the matplotlib library.

The Runge-Kutta method is more accurate than Euler's method and runs just as fast

So far we have used Euler's method for solving ODEs. We have learnt that, using this method, the final expression for the total error is linear in $h$. However for roughly the same compute time we can reduce the total error so it is of order $h^2$ by implementing another method - the Runge-Kutta method.

Note: It is common to use the Runge-Kutta method for solving ODEs given the improved accuracy over Euler’s method. However Euler’s method is still commonly used for PDEs (where there are other, larger, sources of error).

Note: The Runge-Kutta method is actually a family of methods. In fact, Euler’s method is the first-order Runge-Kutta method. There is then the second-order Runge-Kutta method, third-order Runge-Kutta method, and so on..

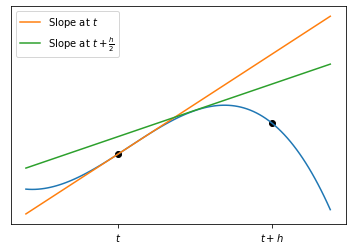

Euler's method does not take into account the curvature of the solution, whilst Runge-Kutta methods do, by calculating the gradient at intermediate points in the (time-)step. For example, in the image below we see two estimates to the blue line. Euler's method is equivalent to the orange line, where we have taken the slope at time $t$ and extrapolated it to $t+h$. A Runge-Kutta type method performs extrapolation using the slope (or slopes) at an intermediate time (or multiple intermediate times). In this case, the green line formed from the slope at $t+\frac{h}2$ gives a better approximation at $t+h$. This green line is a visual representation of the second-order Runge Kutta method, which is also known as the "midpoint method".

Runge-Kutta methods are derived from Taylor expansion(s) around intermediate point(s)

To derive the second-order Runge-Kutta method we:

1) estimate $x(t+h)$ using a Taylor expansion around $t+\frac{h}{2}$:

\begin{equation} x(t+h) = x(t+\frac{h}{2}) + \frac{h}{2}\left(\frac{\mathrm{d}x}{\mathrm{d}t}\right)_{t+\frac{h}{2}} + \frac{h^2}{8}\left(\frac{\mathrm{d}^2x}{\mathrm{d}t^2}\right)_{t+\frac{h}{2}}+\mathcal{O}(h^3) \end{equation}

2) estimate $x(t)$ using a Taylor expansion around $t-\frac{h}{2}$:

\begin{equation} x(t) = x(t+\frac{h}{2}) - \frac{h}{2}\left(\frac{\mathrm{d}x}{\mathrm{d}t}\right)_{t+\frac{h}{2}} + \frac{h^2}{8}\left(\frac{\mathrm{d}^2x}{\mathrm{d}t^2}\right)_{t+\frac{h}{2}}+\mathcal{O}(h^3) \end{equation}

3) Subtract Equation 2 from Equation 1 and re-arrange:

\begin{eqnarray} x(t+h) &=& x(t) + h\left(\frac{\mathrm{d}x}{\mathrm{d}t}\right)_{t+\frac{h}{2}}+\mathcal{O}(h^3) \\ x(t+h) &=& x(t) + hf(x(t+\frac{h}{2}),t+\frac{h}{2})+\mathcal{O}(h^3) \end{eqnarray}

Note that the $h^2$ term has completely disappeared, and the error term is now order $h^3$. We can say that this approximation is now accurate to order $h^2$.

The problem is that this requires knowledge of $x(t+\frac{h}{2})$ which we don't currently have. We can however estimate this using the Euler method!

\begin{equation} x(t+\frac{h}{2}) = x(t) + \frac{h}{2}f(x,t). \end{equation}

Substituting this into Equation 3 above, we can write the method for a single step as follows:

\begin{eqnarray} k_1 &=& hf(x,t) \\ k_2 &=& hf(x+\frac{k_1}{2},t+\frac{h}{2})\\ x(t+h) &=& x(t) + k_2 \end{eqnarray}

See how $k_1$ is used to give an estimate for $x(t+\frac{h}{2})$ in $k_2$, which is then substituted into the third equation to give an estimate for $x(t+h)$.

Note: Higher orde Runge-Kutta methods can be derived in a similar way - by calculating the Taylor series around various points and then taking a linear combination of the resulting expansions. As we increase the number of intermediate points, we increase the accuracy of the method. The downside is that the equations get increasingly complicated.

Runge-Kutta methods can be applied using the Python skills we have developed

To demonstrate the Runge-Kutta method with a simple example, we will re-visit the differential equation for nuclear decay. We will model the decay process over a period of 10 seconds, with the decay constant $\lambda=0.1$ and the initial condition $N_0 = 1000$:

\begin{equation} \frac{\mathrm{d}N}{\mathrm{d} t} = -0.1 N \end{equation}

First, let's import the standard scientific libraries we will be using - Numpy and Matplotlib:

import numpy as np
import matplotlib.pyplot as plt

Let's definte the function $f(N,t)$ which describes the rate of decay. In this case, the function depends only on the number of atoms present.

def f(Num_atoms):
    return -0.1*Num_atoms

Next we'll list the simulation parameters: start time, end time, number of time steps and step size (which is calculated using the number of time steps). For comparison, these will be the same as we used for Euler's method.

a = 0                  # start time
b = 10                 # end time
num_steps = 5         # number of time steps
h = (b-a) / num_steps  # time step size

We then specify the initial conditions - which in this case is the number of atoms to begin with:

Num_atoms = 1000       # initial condition

We use the Numpy arange function to generate a list of evenly spaced times at which to evaluate the number of atoms. We also create an empty list to hold the values for $N$ over time.

time_list = np.arange(a,b,h)

# create an empty list to hold the calculated N values
Num_atoms_list = []

Finally, we apply second-order Runge-Kutta method using a For loop.

for time in time_list:
    Num_atoms_list.append(Num_atoms)
    k1 = h*f(Num_atoms)
    k2 = h*f(Num_atoms+0.5*k1)
    Num_atoms += k2

We can easily compare our various models using the `matplotlib` plotting library

Using the analytic solution from a previous lesson, we can define a function for calculating the number of atoms $N$ as a function of time (this is the exact solution).

def analytic_solution(time):
    return 1000*np.exp(-0.1*time)

We can use this to calculate the exact value for $N$ over the full time range. We use a large number of points in time (in this case 1000) to give a nice smooth curve - note that we have renamed the variables for the analytic case so we do not override the original calculation parameters.

num_steps_analytic = 1000
h_analytic = (b-a) / num_steps_analytic
time_analytic_list = np.arange(a,b,h_analytic)
Num_atoms_analytic_list = []

for time in time_analytic_list:
    Num_atoms_analytic_list.append(analytic_solution(time))

We can also re-calculate the atom population using Euler's method for comparison to the Runge-Kutta method:

Num_atoms = 1000
Num_atoms_euler_list = []

for time in time_list:
    Num_atoms_euler_list.append(Num_atoms)
    Num_atoms += h*f(Num_atoms)

Finally we plot all three models side-by-side:

plt.plot(time_analytic_list,Num_atoms_analytic_list,label="analytic")
plt.scatter(time_list, Num_atoms_list,label="Runge-Kutta (second-order)")
plt.scatter(time_list, Num_atoms_euler_list,label="Euler's method")
plt.xlabel("time")
plt.ylabel("Number of atoms")
plt.legend()

<matplotlib.legend.Legend at 0x12a014e20>

The second-order Runge-Kutta method is accurate to order $h^2$

We have seen earlier in the course that Euler's method is a first-order method accurate to order $h$.
The error term for one step of the Runge-Kutta method is ${O}(h^3)$ - this makes the Runge-Kutta method accurate to order $h^2$ which is why this is called the second-order Runge Kutta method (RK2).
With the RK2 can use a fewer number of steps whilst getting the same accuracy as Euler's method.
There are higher order Runge-Kutta methods which increase the accuracy further.

Keypoints:

The Runge-Kutta method is more accurate than Euler's method and runs just as fast
Runge-Kutta methods are derived from Taylor expansion(s) around intermediate point(s)
Runge-Kutta methods can be applied using the Python skills we have developed
We can easily compare our various models using the matplotlib plotting library
The second-order Runge-Kutta method is accurate to order $h^2$
